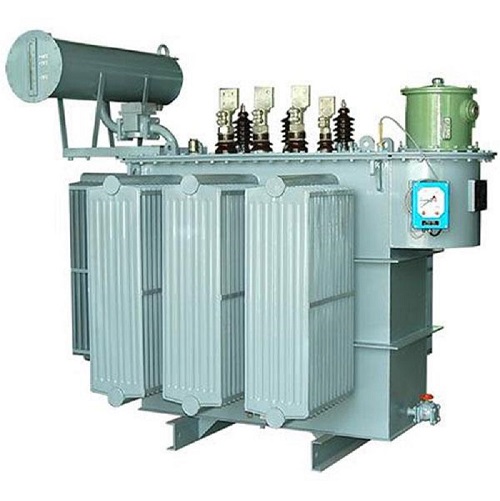

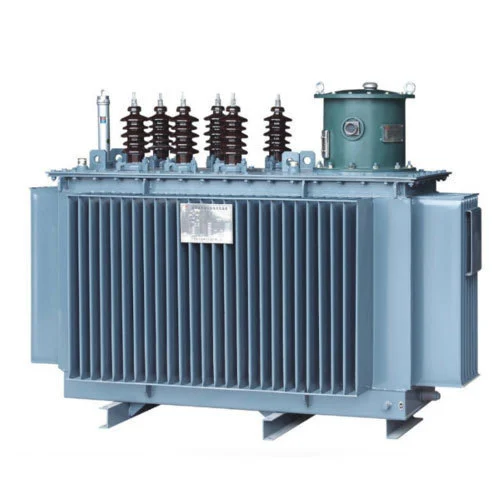

| 01 |
Design Standard: |
IEC-76, BS-171, ANSI etc. |
| 02 |
Type: |
Three Phase Wound core |
| 03 |
Application |
Outdoor/Indoor |
| 04 |
Winding Material: |
High Conductivity Copper> |
| 05 |
Core Type and Materials: |
CRGO Silicon steel |
| 06 |
Nominal Voltage |
| HT=11000 V | HT= 33000 V |
| LT= 415 V | LT=415 V |
|
| 07 |
Rated Frequency |
50/60 Hz |
| 08 |
Rating |
50 KVA to 5000 KVA or others on request |
| 09 |
Impedance |
As per required |
| 10 |
Vector Group |
As per required |
| 11 |
Colling Method |
ONAN |
| 12 |
Maximum Temperature rise at full load |
|
| Winding |
Shall not exceed 65 oC |
| Insulating Oi |
Shall not exceed 65 oC |
| 13 |
Tap Changer: |
Off- Load and On- Load |
| 14 |
Tapping |
2.5 % to 7.5 % in step of 2.5 % |
| 15 |
| Bushing |
|---|
| Type and Materials |
| Quantity |
| Mount Position |
|
|
| Outdoor type, Porcelain |
| HT= 3, LT= 4 |
| HT= On the tank cover | LT= On the tank cover |
|
| 16 |
| Tank |
|---|
| Design |
| Ground position |
| Lifting facility |
| Conservator |
| Breather |
| Painting |
|
|
| Bolted type complete with cover and gasket |
| With bolted ring type connector |
|
|
|
|
|
| 17 |
Insulating oil |
New, Unused, mineral oil |
